柴油發電機配件OE49337恒溫節溫器、OE52030壓縮機

項目 零配件號碼 最近的部分號碼 描述

1 OE49337 1 OE49337 恒溫節溫器殼

2 OE48311 1 OE48311 密封 - O 的圈

3 OE50509 1 OE50509 恒溫節溫器

5 ST45119 2 ST45119 密封 - O 的圈

6 ST20106 1 ST20106 栓塞

7 ST49856 1 ST49856 墊圈

8 OE29192 1 OE29192 軋輥銷

9 OE25649 1 OE25649 栓塞

10 ST49888 1 ST49853 墊圈

11 ST20133 1 ST20133I 栓塞

12 ST49891 1 ST49891 墊圈

13 UF1570 2 UF1570 固正螺釘

14 0920054 2 0920054 墊圈

15 ST20133 1 ST20133I 栓塞

16 ST49891 1 ST49891 墊圈

17 UF1565 1 UF1565 固正螺釘

18 0920054 1 0920054 墊圈

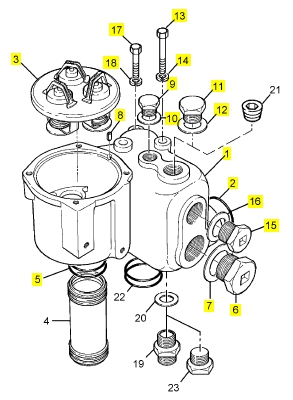

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

1 OE49337 1 OE49337 THERMOSTAT HOUSING

2 OE48311 1 OE48311 SEAL - O RING

3 OE50509 1 OE50509 THERMOSTAT

5 ST45119 2 ST45119 SEAL - O RING

6 ST20106 1 ST20106 PLUG

7 ST49856 1 ST49856 WASHER

8 OE29192 1 OE29192 ROLL PIN

9 OE25649 1 OE25649 PLUG

10 ST49888 1 ST49853 WASHER

11 ST20133 1 ST20133I PLUG

12 ST49891 1 ST49891 WASHER

13 UF1570 2 UF1570 SETSCREW

14 0920054 2 0920054 WASHER

15 ST20133 1 ST20133I PLUG

16 ST49891 1 ST49891 WASHER

17 UF1565 1 UF1565 SETSCREW

18 0920054 1 0920054 WASHER

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

1 OE51197 1 OE51197 CONNECTION

2 OE50888 1 OE50888 GASKET - THERMOSTAT HSG

5 UF1512 4 UF1512 BOLT

6 ST20606 4 ST20606 WASHER

8 UF4354 1 UF4354 NUT

10 UF3301 1 UF3301 STUD

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

1 OE50433 1 OE50433 CONNECTION

3 OE48311 3 OE48311 SEAL - O RING

4 UF1558 4 UF1558 SETSCREW

5 0920054 4 0920054 WASHER

6 OE46271 1 OE46271 PIPE

7 ST45119 6 ST45119 SEAL - O RING

35 OE48309 1 OE48309 CONNECTION

39 UF1563 3 UF1563 SETSCREW

40 0920054 3 0920054 WASHER

41 OE51157 1 OE51157 PIPE

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

1 OE51230 1 OE51230 PIPE

2 ST45119 2 ST45119 SEAL - O RING

3 OE50363 1 OE50363 BRACKET

4 UF1502 2 UF1502 BOLT

5 0920053 2 0920053 WASHER

6 ST15902 2 ST15902 WASHER

7 OE51069 1 OE51069 BRACKET

8 OE50547 1 OE50547 CLAMP

9 OE51255 1 OE51255 NUT

10 UF1652 2 UF1652 BOLT

11 ST16262 2 ST16262 WASHER

12 OE51019 1 OE51019 PIPE

13 ST20552 1 CV72340 ADAPTOR

14 ST49852 1 ST49852 WASHER

15 OE51120 1 OE51120 ADAPTOR

16 ST49891 1 ST49891 WASHER

17 OE51367 1 OE51367 PIPE

18 DV1077 1 DV1077 UNION

19 ST49856 1 ST49856 WASHER

項目 零配件號碼 最近的部分號碼 描述

1 OE52030 1 OE52030 壓縮機

2 OE49947/5 1 CV10941 密合墊

3 ST10632 1 ST10632 密封 - O 的圈

4 UF1717 2 UF1717 螺拴

5 UF4358 2 UF4358 UNF 螺帽

6 ST16263 2 ST16263 墊圈

7 UF1705 1 UF1705 螺拴

8 ST16263 1 ST16263 墊圈

9 OE49947/1 1 OE49947/1 栓塞

10 ST52763 1 ST52763 栓塞

11 OE48944 1 OE48944 公制的螺帽

12 OE48948 1 OE48948 輥橋承

13 OE48945 1 OE48945 CIRCLIP

14 OE50793 1 OE50793 傳動機構

15 ST48821 1 ST48821 CIRCLIP

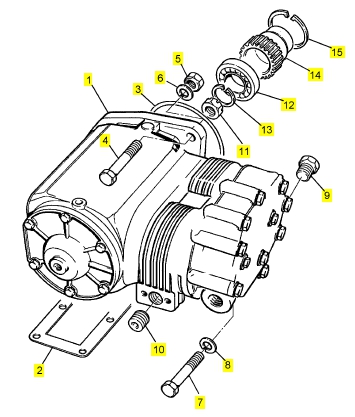

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

1 OE52030 1 OE52030 COMPRESSOR

2 OE49947/5 1 CV10941 GASKET

3 ST10632 1 ST10632 SEAL - O RING

4 UF1717 2 UF1717 BOLT

5 UF4358 2 UF4358 UNF NUT

6 ST16263 2 ST16263 WASHER

7 UF1705 1 UF1705 BOLT

8 ST16263 1 ST16263 WASHER

9 OE49947/1 1 OE49947/1 PLUG

10 ST52763 1 ST52763 PLUG

11 OE48944 1 OE48944 METRIC NUT

12 OE48948 1 OE48948 ROLLER BEARING

13 OE48945 1 OE48945 CIRCLIP

14 OE50793 1 OE50793 GEAR

15 ST48821 1 ST48821 CIRCLIP

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

1 OE51371 1 OE51371 AIR PIPE

2 OE50969 2 OE50969 CLIP

3 UF5313 2 UF5313 STRIP

4 UF1563 2 UF1563 SETSCREW

5 0920054 2 0920054 WASHER

6 ST91152 2 ST91152 HOSE

7 ST46404 4 ST46404 HOSE CLIP

8 OE51370 1 OE51370 CONNECTION

9 ST44426 6 ST44426 SETSCREW

10 2134A006 6 2134A006 WASHER

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

1 OE51199 1 OE51199 PIPE

2 OE49256 1 OE49256 BANJO BOLT

3 ST49885 2 ST49885 WASHER

6 CV1972 2 CV1972 CLIP

7 OE7660 2 OE7660 BUSH

8 OE5540 2 OE5540 DISTANCE PIECE

9 OE51198 1 OE51198 ADAPTOR

10 ST43514 2 ST43514 BOLT

11 0920053 2 0920053 WASHER

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

1 OE36135/31 1 OE36135/31 PIPE

2 OE20580 1 OE20580 ADAPTOR

4 OD13473 1 OD13473 CLIP

5 OD13472 1 OD13472 CLIP

6 UF1503 1 UF1503 BOLT

7 OE51255 1 OE51255 NUT

8 ST15902 1 ST15902 WASHER

9 OE51256 1 OE51256 BRACKET

10 ST20554 1 ST20554I ADAPTOR

11 ST49891 1 ST49891 WASHER

12 OE29875/81 1 CV66352 PIPE

13 OE20580 1 OE20580 ADAPTOR

15 OD13472 1 OD13472 CLIP

16 OE50787 1 OE50787 CLIP

17 ST20554 1 ST20554I ADAPTOR

18 ST49891 1 ST49891 WASHER

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

1 OE51095 1 OE51095 PLATE

2 OE51096 1 CV10984 GASKET

3 OE51290 1 OE51290 SPACER

4 OE50896 1 OE50896 GASKET

5 OE50827 1 OE50827 SLEEVE

6 ST29204 6 ST29204 CAPSCREW

7 OE42077 2 OE42077 STUD

8 OE23497 2 OE23497 NUT

10 ST15903 2 ST15903 WASHER

11 OE51002 1 OE51002 PIPE

12 ST20552 1 CV72340 ADAPTOR

13 ST49852 1 ST49852 WASHER

14 ST29232 4 ST29232 CAPSCREW

15 0920053 4 0920053 WASHER

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

2 OE50891 1 OE50891 GASKET

3 ST10964 1 ST10964 SEAL - O RING

4 ST10632 1 ST10632 SEAL - O RING

5 CV10941 1 CV10941 GASKET

6 OE50908 1 OE50908 GASKET - WATER OUTLET

7 OE50904 6 OE50904 GASKET - IND MANIFOLD

8 OE50894 1 OE50894 GASKET

9 OE50888 1 OE50888 GASKET - THERMOSTAT HSG

10 ST45119 10 ST45119 SEAL - O RING

11 ST49857I 2 ST49857I WASHER

12 OE4421 1 OE4421 PIN

13 OE48311 4 OE48311 SEAL - O RING

14 ST49856 2 ST49856 WASHER

15 KU10009 3 KU10009 TAB WASHER

16 2413695 2 2413695 SEAL - O RING

17 ST49853 2 ST49853 WASHER

18 ST45105 12 ST45105 SEAL - O RING

19 OE50886 1 OE50886 GASKET

20 ST49852 5 ST49852 WASHER

21 CV70694 2 CV70694 GASKET - CYLINDER HEAD

22 OE49978 6 OE49978 SEALING RING

23 ST49891 12 ST49891 WASHER

24 OE50114 1 OE50114 SEALING RING

25 OE52105 6 OE52105 GASKET - EXHAUST MANIFOLD

26 OD19995 1 OD19995 SEALING RING

27 OE49256 1 OE49256 BANJO BOLT

28 ST49885 2 ST49885 WASHER

29 0920113 7 0920113 WASHER

29 ST49857 2 ST49857I WASHER

30 ST49940 1 ST49940 WASHER

31 ST10626 1 ST10626 SEALING RING

32 ST49942 2 ST49942 WASHER

33 OD17872 1 OD17872 SEALING RING

34 ST10638 1 ST10638 SEALING RING

35 R2411B118 6 R2411B118 WASHER

36 3311A042 6 3311A042 SEAL

37 ST49858 2 ST49858 WASHER

38 ST49938 17 ST49938 WASHER

39 OD10407 23 OD10407 DAMPER

40 ST49886 4 ST49886 WASHER

41 ST49890 2 ST49890 WASHER

42 OE50896 1 OE50896 GASKET

43 CV10984 1 CV10984 GASKET

44 33817135 6 33817135 SEAL

45 33121416 6 33121416 SHIM

46 CV67896 2 CV67896 GASKET - CYL. HEAD COVER

47 OE50887 1 OE50887 SEAL - ROCKER BOX COVER

48 OE50210 1 OE50210 GASKET

49 OE50898 1 OE50898 GASKET

50 OE50899 1 OE50899 GASKET - BLANKING PLATE

51 OE5718 12 OE5718 SEAL - O RING

52 ST10585 1 ST10585 SEAL - O RING

53 CV10984 1 CV10984 GASKET
